Cradle Aluminum Suspended Platform Zlp630 (suspended platform)
Construction Suspended Platform, Suspended Platform, Swing Stage
Description
Basic Info
- Model NO.: ZLP250-1000
- Lifting Height: 100m
- Total Weigh: 2 Tons
- Steel Rope (Specially-Made): 9.1mm
- Permission Force of Impact: 30kn
- Support Adjustable Heigh: 1.44~2.14m
- Transport Package: Wooden Case
- Origin: China
- Rated Load: 1000kg
- Working Lenght: 7.5m
- Counterweight: 1200kg
- Voltage: 380V/50Hz
- Front Beam Overhang: 1.3~.1.5m
- Trademark: RUIBIAO
- Specification: SGS ISO9001-2000
- HS Code: 8431390000
Product Description

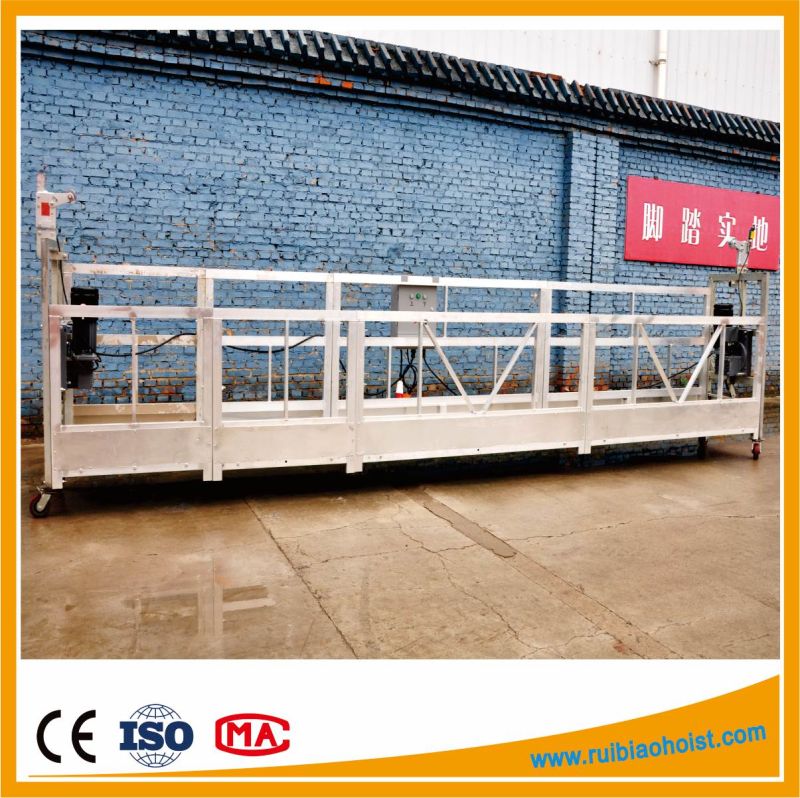

ZLP250, ZLP500, ZLP630, ZLP800, ZLP1000 Suspended Platform
ZLP630 platform is intended for temporary applications for lifting people and their working equipment - at unlimited heights.
The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc.
The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.
Safety systems
To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
1) Service brake incorporated in the LTD hoist.
2) Two fall arrest devices (Anti-tilt LSF safety lock) acting on the safety wire ropes.
3) Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
4) Two upper limit switches.
5) No power descent in case of power failure.
6) Emergency stop.
7) Phase controller. (Option)
Technical Information
The perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, ...
The main para. Of ZLP630 suspended platform:
1) No power descent in case of power failure.
2) Emergency stop.
3) Phase controller. (Option)
4) Rated Load: 630kg
5) Lifting Speed: 9m/min
6) Voltage-3Phase: 380V/ (415V/220V)
7) Frequency: 50Hz/60Hz
8) Power: 1.5kw×2
9) Hoist: LTD63
10) Safety Lock: LSF308
11) Dia. of Wire Rope: 4×31SW+FC-8.3mm
12) Platform Size: (2×3)×0.76×1.45m
13) Weight of Suspension Jibs: 340kg
14) Weight of Lifting Part: Aluminum310kg/Steel 450kg
15) Counter Weight: 900kg
Platform Suspension
The different variants are to be distinguished by their suspension principles. Three different stirrups allow to choose the platform the best to your requirements (type of work, type of building, maximum loads, number of persons).
End stirrup:
Fitted at the ends of the platform.
Advantages:
The most economical and lightweight version, although showing extraordinary performances.
"Frame" stirrup:
Slipped over the platform like a "frame".
Advantages:
The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.
"L" stirrup:
Placed at the rear of the platform behind the workers.
Advantages:
The working surface is completely clear and the whole façade can be easily accessed.

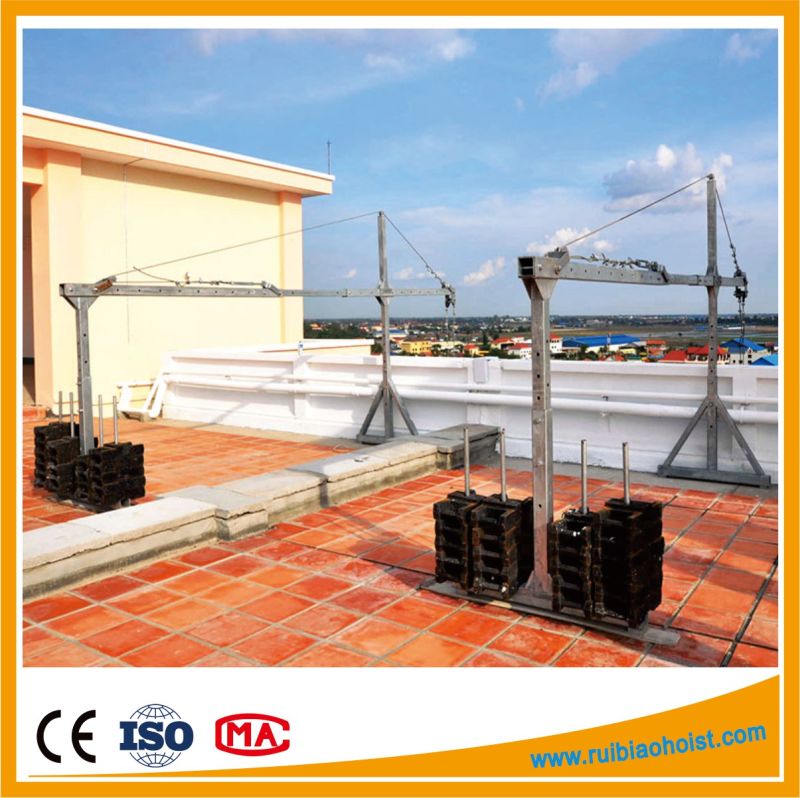

Anchoring Options
The platform applies to all types of suspension which are manufactured according to the current standards and recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. Rigid offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs or the parapet clamp.
In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.
Double-Deck Platform
The ZLP platform can be eily transformed in a double-deck platform using especially designed attachment rods.
| Tpye | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 250 kg | 500 kg | 630 kg | 800 kg | 1000 kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.1×1 | 1.1×2 | 1.5×2 | 1.8×2 | 1.8×2 |
| Hoist | LTD50 | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety Lock | LSF308 | LSF308 | LSF308 | LSF309 | LSF310 |
| Dia. of Wire Rope | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-9.1mm | 4×31SW+FC-10.2mm |
| Platform Size(L×W×H) | 1.2×0.65×2.3M | (2.5×2)×0.76×1.45M | (2×3)×0.76×1.45M | (2.5×3)×0.76×1.45M | (2.5×3)×0.76×1.45M |
| Weight of Suspension Jibs | 170kg | 340kg | 340kg | 340kg | 340kg |
| Weight Of Lifting Part | 200kg(Steel) | 410kg(Steel) | 450kg(Steel) | 520kg(Steel) | 520kg(Steel) |
| 140kg(Aluminum) | 290kg(Aluminum) | 310kg(Aluminum) | 340kg(Aluminum) | 340kg(Aluminum) | |
| Counter Weight | 350kg | 800kg | 900kg | 1000kg | 1200kg |
| 20`GPQty Of Package | 13 | 12 | 10 | 8 | 8 |
| The weight of lifting part includes platform, hoist, safety locks and electric control system. | |||||
Factory in China ZLP500/630/800 Powered Suspended Platform/cradle/window cleaning equipment
A. Introduction of ZLP Suspended Platform
ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level buildings and exterior construction.
B. Features of ZLP Suspended Platform
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be asjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized stee wirel rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. )
C. Advantages of JIUHONG ZLP Suspended Platform
1. CE ISO international certificates.
2. One year guarantee time.
3. Special made can be accepted.
4. Factory direct sale.
D. Technical Parameters of ZLP Suspended Platform
| Model | ZLP1000 | ZLP800 | ZLP630 | ZLP500 | ZLP250 |
| Rated load(kg) | 1000 | 800 | 630 | 500 | 250 |
| Lifting speed | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 9.6+0.5 |
| (m/min) | |||||
| Platform Dimension (m) | 7.5 | 7.5 | 6 | 5 | 2.5 |
| Lifting Height(m) | 100 | 100 | 100 | 100 | 100 |
| Voltage(V) | 380/220 etc | 380/220 etc | 380/220 etc | 380/220 etc | 380/220 etc |
| Frequency(HZ) | 50/60HZ | 50 | 50 | 50 | 50 |
Common used models of ZLP630 and ZLP800
| Model | ZLP800 | ZLP630 | ||
| Rated load | 800Kg | 630Kg | ||
| Lifting speed | 8-10m/min | 8-10m/min | ||
| Platform Dimension L×W×H(mm) | 7500(2.5m*3)×720×1300 | 6000(1+2+3m)×720×1300 | ||
| Lifting Height | 100 m | 100 m | ||
| Cable | 100 m | 100 m | ||
| Steel rope diameter(specially-made) | 9.1mm | 8.3mm | ||
| Hoist | Pulling power | 7.84KN | 6.17KN | |
| electric motor | model | YEJ100L-4 | YEJ90L-4 | |
| Power | 1.8KW*2 | 1.5KW*2 | ||
| Voltage | 380V | 380V | ||
| Rotational speed | 1420rpm | 1420rpm | ||
| Braking moment | 15Nm | 15Nm | ||
| Safety lock | Permission force of impact | 30KN | 30KN | |
| Locking Cable Angle | 3°~8° | 3°~8° | ||
| Suspension mechanism(Galvanized ) | Front beam overhang | 1.3~1.5m | 1.3~1.5m | |
| Support adjustable height | 1.44~2.14m | 1.44~2.14m | ||
| Counterweight | 1000kg | 800kg | ||
